Confidence in
your generator.

Generator testing. Precision diagnostics.

ABOUT
AlektraPower Solutions Inc. is a Philippine company specializing in generator testing, diagnostics and software development for electrical calculations and testing applications.

Our electrical engineers bring more than 30 years of power plant maintenance experience, including hands-on expertise in turbo-generators at large thermal power plants.

With Level 1 and Level 2 certified Partial Discharge Test Engineers and high-voltage diagnostic tools, we help you understand generator condition and make informed maintenance decisions.

Our specialized software complements these services by simplifying calculations, supporting test preparation, assisting technical analysis and facilitating report generation.

We work closely with your team, providing clear communication and practical technical support throughout your project.

Services

GENERATOR TESTING

GENERATOR TESTING

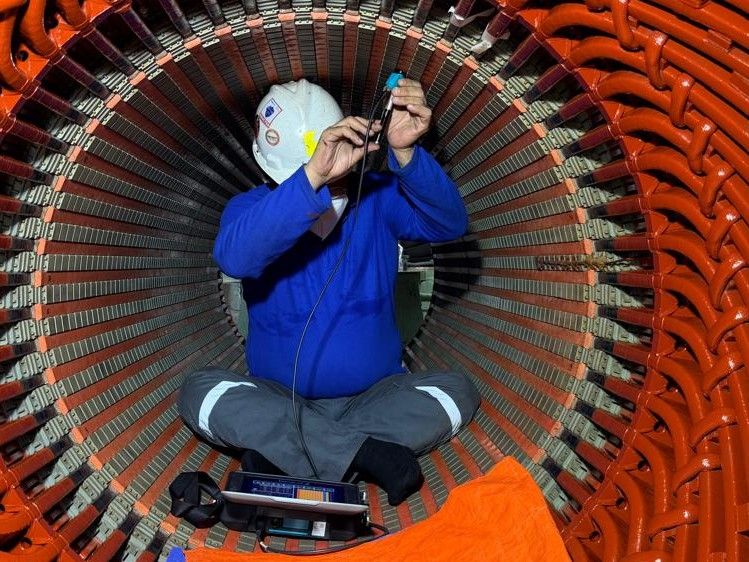

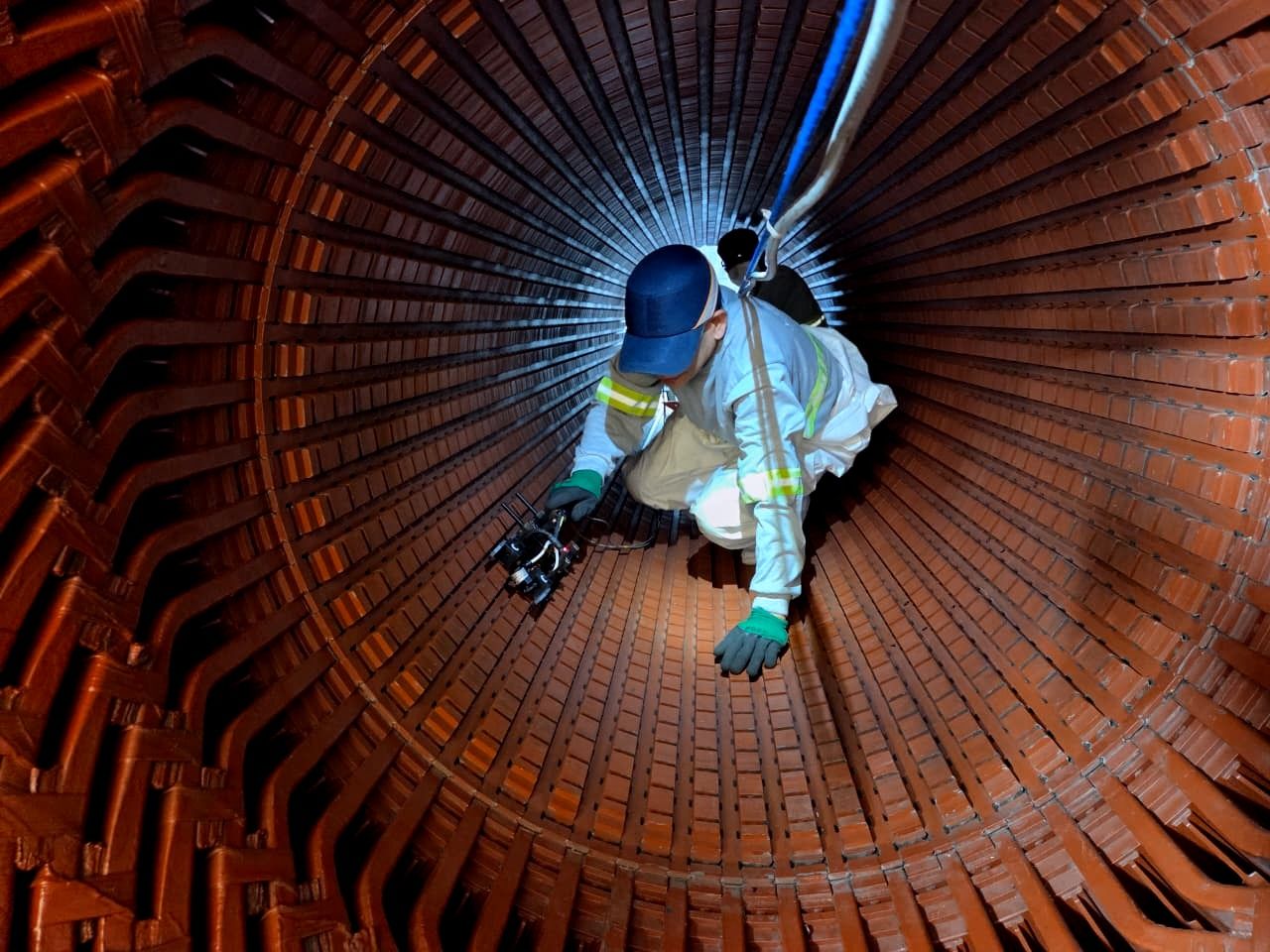

Know your generator’s condition with AlektraPower’s comprehensive stator and rotor testing. From insulation and partial discharge diagnostics to core testing and borescope inspections, our experienced engineers deliver insights to support informed maintenance decisions and reliable operation.

Learn More

Products

Quick View

Ultimeg Thinner T4 - 1 liter can

Description Color: transparent Density at 15 ° C: 0.868 Initial distillation temperature ° C: 138.0 50% distillation ° C: 139.1 Dry distillation temperature ° C: 141.0 Flash point ° C: 25 Aromatic content% v / v: 99.5 Benzene content% v / v: NND N-hexane content% w / w: NND Aniline point ° C: 9.5 Kauri-butanol number: 94 Viscosity at 20 ° C (cSt): 0.76 Refractive index at 20 ° C: 1,495 Vapor pressure at 20 ° C (bar.m. bar): 7.0 Lower explosion limit% v / v: 1.0 Upper explosion limit% v / v: 6.5 Auto-ignition temperature ° C: 490 Surface pressure at 20 ° C mN / m: 30.5 Liter / ton at 15 ° C: Compliance with standards 1152 BS 458/2

Quick View

Ultimeg 2020 Two Part Epoxy - 5kg kit

Technical data Base • Density: 1.13–1.17 g/cm³. • Viscosity at 25°C: 20–25 poise. Hardener • Density: 0.98–1.00 g/cm³. • Viscosity at 25°C: 0.5 poise. Mixed mass • Density: 1.10–1.14 g/cm³. • Viscosity at 25°C: 2–6 poise. • Processing time 100 grams mass at 20°C: 30 min. • Hardness: 88 D Shore. • Dielectric strength: 18.2 kV/mm. • Thermal conductivity: 0.22W/M/K. • Curing time at 50°C: 6 h. Curing time at 25°C: 24 h. • Mixing ratio weight, base: hardener 5:1 pbw (parts by weight). • Mixing ratio volume, base: hardener 4.3:1 pbv (parts by volume). • Storage stability in a cool, dry location: 24 months in unopened packaging. • Cleaning agent: acetone before hardening. • Safety data sheet complies with applicable rules for Sweden.

Quick View

Ultimeg 2000/372 Red Insulating Varnish - 20-liter can

Technical data • Flash point: 27°C. • Density: 0.96–0.99 g/cm³. • Volatility: 40–42%. • Viscosity at 25°C: 85–40 sec B4 cup. • Drying time at 20°C: - Surface dry 15 min. - Dry through 45–60 min. - Hard dry 24 h. • Form of curing: Air-dried/quick-dried in oven. • Application: Brush, dip or spray. • Storage stability in a cool, dry location: 12 months. • Dielectric strength: 1110 V/0.01 mm. • Cleaning agent/thinner: Xylene/thinner Ultimeg 2000/T4. • Safety data sheet complies with applicable rules for Sweden.

Quick View

Ultimeg 2000/372 Red Insulating Varnish - 1-liter can

Technical data • Flash point: 27°C. • Density: 0.96–0.99 g/cm³. • Volatility: 40–42%. • Viscosity at 25°C: 85–40 sec B4 cup. • Drying time at 20°C: - Surface dry 15 min. - Dry through 45–60 min. - Hard dry 24 h. • Form of curing: Air-dried/quick-dried in oven. • Application: Brush, dip or spray. • Storage stability in a cool, dry location: 12 months. • Dielectric strength: 1110 V/0.01 mm. • Cleaning agent/thinner: Xylene/thinner Ultimeg 2000/T4. • Safety data sheet complies with applicable rules for Sweden.

Software Download

Electromagnetic Core Imperfection Detection (ELCID) Calculator

The ELCID Calculator is a complimentary tool that helps engineers calculate the single-turn excitation voltage required for ELCID testing using the IRIS Power ELCID Evolution.

Download

Stator Wedge Tightness App

A specialized engineering application designed to record, analyze, and visualize generator stator wedge tightness measurements using the Proceq Equotip Leeb Hardness Tester. It automates wedge condition classification, generates color-coded wedge maps, evaluates results against acceptance criteria, and produces detailed reports to support generator maintenance and condition assessment.

Download

HV AC Test Compensating Reactor Calculator

Designed to assist in calculating reactor requirements for high-voltage testing applications. It aims to simplify technical calculations and support engineers in planning and preparing electrical testing activities.

Download

Stator Winding Studio

A specialized engineering application designed to assist in creating and visualizing generator stator winding diagrams. It aims to simplify winding layout preparation, support winding configuration analysis, and provide a useful reference for generator maintenance, inspection, and rewinding activities.

Download

Stator Cooling Water Pressure and Vacuum Decay Test

Stator Cooling Water Pressure and Vacuum Decay Test Four tools in one app Pressure Decay: a 24-hour pressure hold, corrected for barometer and winding temperature, with leak rate and % drop at 2, 6, 12 and 24 hours. Vacuum Decay: a 24-hour vacuum hold with % rise against a pro-rated acceptance limit, and optional hourly barometer and PT100 temperature columns. Vacuum Leak Rate: a 2-hour vacuum rise with leak rate in Cu. Ft./Day or Liters/Day, test volume, skid and hose subtraction, and a net stator leakage PASS/FAIL. Pressure Conversion: every absolute, gauge and vacuum unit side by side, plus the full-vacuum value at your site’s elevation.

Download

Rotor Inter-turn Short Studio

Find inter-turn shorts in rotor windings before they fail. Pair your existing RSO (recurrent surge oscillograph) device with a PicoScope and capture surge waveforms live. The app compares them side by side and shows EAR, Peak % and the Relative Factor, with a clear pass or fail. AUTO setup, a stored reference waveform, channel deskew, and one-click PDF-ready reports with CSV and MATLAB export.

Download

Charge Q Calculator

For PD Charge simulator

Download

Gallery

Contact us

  • Phase 3 Block 41 Lot 27 Suntrust Verona, Hoyo, Silang, Cavite
